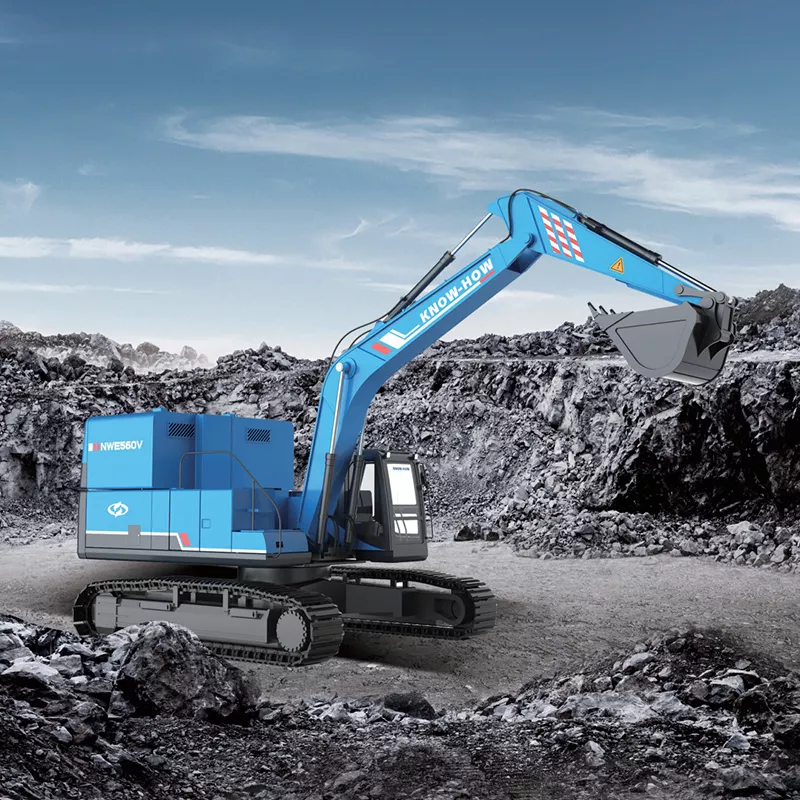

NWE560V heavey duty 350kwh battery Permanent magnet synchronous motor Elelctric Crawler Hydraulic Excavator

Parametros del producto
Electric Excavator NWE560V
Vehicle Spec.UnitNWE560V
Motor Type/Permanent magnet synchronous motor
Vehicle WeightKG52500
Bucket Capacity2.8
Motor Type No./YQW3-225D-17K-RA2
Rated PowerKw/R/Min280/1850
Battery CapacityKwh350*2
Rated VoltageV576
Walk Speedkm/h3.0/4.8
Turning Circle Speedr/min8.6
Max GradeabilityDegree70
Bucket Digging PowerKN298
Ground pressurekPa89
Hydraulic Pump type/V90N230DP
Maximum dischargeL/min414x2
Bucket Rod lengthmm2550
Swing Arm Lengthmm6560
A-Total Lengthmm12190
B-Total Widthmm3340
C-Total Height(Swing Arm)mm4050/4122
D-Total Height(Cabin)mm3280
E-Ground Clearancemm1300
F-Ground Cleancemm720
G-Rear Tail Turning Radiusmm4440
H-Crawler on ground lengthmm4360
J-Crawler Total Lengthmm5390
K-Rail Distancemm2740
L-Crawler Widthmm3340
M-Crawler Plate Widthmm600
N-Cabin Heightmm3316
O-Max Digging Heightmm10000
P-Max Dump Heightmm6760
Q-Max Digging Depthmm6260
R-Max vertical  Digging Depthmm5620
S-2.5m Digging Depthmm6070
T-Max Digging Distancemm10580
U-Max.digging distance on groundmm10360
V-Min Turn Radiusmm4825
W-Max. height at min. turn radiusmm9250
X-Distance rotation center to rearmm4437.5
Z-Counterweight Clearancemm2623
A1-On Ground Lengthmm6520
